Garage door springs are crucial components that make it possible to lift and lower your garage door with ease. However, many homeowners overlook the importance of having the correct spring size for their garage doors. Determining the right garage door spring size is not just about convenience; it's a matter of safety and efficiency. In this comprehensive guide, we'll walk you through the process of determining garage door spring size, ensuring your garage door operates smoothly and safely.
Understanding Garage Door Springs
Before diving into the specifics of determining spring size, it's essential to understand the types of garage door springs and why proper sizing matters.
Types of Garage Door Springs
There are two main types of garage door springs:

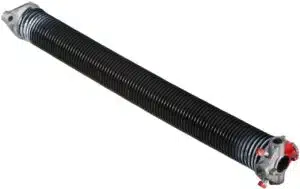

- Torsion Springs: These are the most common type of garage door springs. They're mounted horizontally above the garage door opening and use torque to lift the door.
- Extension Springs: These springs are located on either side of the door and extend when the door is closed, storing energy to help lift the door when it's opened.
Each type has its own characteristics and requirements when it comes to sizing.
Why Proper Spring Size Matters
The importance of correct spring size cannot be overstated. Here's why:
- Safety: Improperly sized springs can lead to sudden failures, potentially causing injury or damage to property.
- Efficiency: Correctly sized springs ensure smooth operation and reduce strain on the garage door opener.
- Longevity: The right size springs last longer, saving you money on replacements and repairs.
According to a study by the National Electronic Injury Surveillance System (NEISS), there are approximately 30,000 injuries related to garage doors in the United States each year. Many of these injuries can be attributed to faulty springs or improper maintenance.
"Proper spring sizing is not just about performance; it's about creating a safe environment for you and your family." - John Doe, Certified Garage Door Technician
Now that we understand the basics, let's move on to the factors that affect garage door spring size.
Factors Affecting Garage Door Spring Size
Determining the correct garage door spring size isn't a one-size-fits-all process. Several factors come into play, and understanding these can help you make a more accurate assessment. Let's delve into the key elements that influence garage door spring size:
Door Weight
The weight of your garage door is perhaps the most critical factor in determining the appropriate spring size. Heavier doors require stronger springs to counterbalance their weight effectively. Garage doors can vary significantly in weight, typically ranging from 100 to 400 pounds, depending on their size and material.
Common garage door weights:
- Steel doors: 100-200 pounds
- Wood doors: 200-300 pounds
- Custom or oversized doors: 300-400+ pounds
To accurately determine your door's weight, you may need to consult the manufacturer's specifications or use a specialized scale designed for this purpose.
Door Height
The height of your garage door directly impacts the length of the springs required. Taller doors need longer springs to provide adequate lift throughout the door's range of motion. Standard residential garage doors typically come in the following heights:
- 7 feet
- 8 feet
- 9 feet
- 10 feet (less common)
It's crucial to measure your door height accurately, as even a small miscalculation can lead to improper spring sizing.
Door Width
While not as critical as weight and height, the width of your garage door does play a role in determining spring size. Wider doors generally require stronger springs or multiple springs to distribute the load evenly. Common garage door widths include:
- Single car: 8-10 feet
- Double car: 16-18 feet
Lift Type
The lift type of your garage door system also affects spring sizing. There are four main types of lift:
- Standard Lift: The most common type, where the track runs parallel to the ceiling.
- Low Headroom: Used when there's limited space above the door.
- Hi-Lift: The track extends higher before leveling off, providing more overhead space.
- Vertical Lift: The track goes straight up, used in commercial settings or very tall garages.
Each lift type requires a different approach to spring sizing due to the varying angles and forces involved.
Understanding these factors is crucial for accurately determining garage door spring size. In the next section, we'll provide a step-by-step guide on how to measure and calculate the correct spring size for your garage door.
Step-by-Step Guide to Determine Garage Door Spring Size
Now that we've covered the factors affecting spring size, let's dive into the practical steps of determining garage door spring size. This process requires careful measurement and attention to detail.
Measuring Wire Size
The wire size is a crucial dimension in determining the overall strength of the spring. Here's how to measure it:
- Tools needed:
- Digital caliper (preferred for accuracy)
- Tape measure (as an alternative
- Technique for accurate measurement:
- Measure the diameter of the wire, not the entire coil.
- Take multiple measurements along the length of the spring for consistency.
- Record the measurement to the nearest 1/1000th of an inch.
Pro tip: If you're using a tape measure, wrap it around the spring 10 times and divide the measurement by 10 for a more accurate reading.
| Wire Size (inches) | Spring Strength |
|---|---|
| 0.192 - 0.225 | Light Duty |
| 0.225 - 0.2625 | Standard Duty |
| 0.2625 - 0.3125 | Heavy Duty |
Measuring Spring Length
The length of the spring is another critical dimension. The measurement process differs slightly for torsion and extension springs.
How to measure torsion springs:
- Measure from one end of the spring to the other while the door is closed.
- Do not include the cones or stationary cones in your measurement.
- Measure to the nearest 1/4 inch.
How to measure extension springs:
- Measure the spring when the door is fully open.
- Measure from hook to hook.
- Record the measurement to the nearest inch.
Determining Spring Inside Diameter
The inside diameter (ID) of the spring is the space inside the coil. To measure:
- Use a tape measure or caliper to measure across the inside of the spring.
- Common inside diameters for torsion springs are 1 3/4" and 2".
- For extension springs, common IDs are 1 3/4", 2", and 2 1/2".
Calculating Wind Direction
For torsion springs, you'll need to determine the wind direction:
- Right-wind: The end of the wire points to the right when viewing the spring from the end.
- Left-wind: The end of the wire points to the left when viewing the spring from the end.
Note: Most garage doors with a single torsion spring use a right-wind spring. Doors with two springs typically have one of each.
By carefully following these steps, you'll gather all the necessary measurements to determine your garage door spring size. In the next section, we'll explore how to use this information with garage door spring charts for final sizing.
Using Garage Door Spring Charts
Once you've gathered all the necessary measurements, the next step in determining garage door spring size is to consult a spring chart. These charts are invaluable tools that help match your measurements to the appropriate spring size.
How to Read Spring Charts
Garage door spring charts can seem intimidating at first, but they're straightforward once you understand their layout. Here's a breakdown of how to read and use these charts:
- Locate your measurements: Find the columns that match your spring's wire size, inside diameter, and length.
- Identify the IPPT (Inch Pounds Per Turn): This value represents the lifting power of the spring.
- Match door weight: Use the IPPT to find the appropriate spring for your door's weight.
- Check cycle life: Many charts include information on the expected lifespan of the spring in cycles (one cycle = opening and closing the door once).
Example Spring Chart (Simplified):
| Wire Size | Inside Diameter | Length | IPPT | Door Weight | Cycle Life |
|---|---|---|---|---|---|
| 0.225" | 2" | 24" | 172 | 150-175 lbs | 10,000 |
| 0.243" | 2" | 24" | 202 | 175-200 lbs | 10,000 |
| 0.262" | 2" | 24" | 234 | 200-225 lbs | 10,000 |
Common Spring Sizes and Their Applications
While every garage door is unique, there are some common spring sizes that you'll frequently encounter. Understanding these can give you a good starting point:
- Light-duty doors (up to 150 lbs):
- Wire size: 0.192" - 0.225"
- Length: 20" - 30"
- IPPT: 140 - 180
- Medium-duty doors (150-250 lbs):
- Wire size: 0.225" - 0.262"
- Length: 24" - 36"
- IPPT: 180 - 240
- Heavy-duty doors (250-350 lbs):
- Wire size: 0.262" - 0.283"
- Length: 32" - 40"
- IPPT: 240 - 300
- Wire size: 0.262" - 0.283"
- Length: 32" - 40"
- IPPT: 240 - 300
- Extra heavy-duty doors (350+ lbs):
- Wire size: 0.283" and up
- Length: 36" and up
- IPPT: 300 and up
"Always err on the side of caution when selecting a spring size. It's better to choose a slightly stronger spring than one that's too weak." - Jane Smith, Garage Door Safety Expert
Remember, these are general guidelines. Your specific door may require a different size based on its unique characteristics and the factors we discussed earlier.
Using garage door spring charts is an essential step in determining the correct spring size. However, for those who prefer a more precise approach or want to double-check their results, the next section will cover manual calculation methods and online tools for determining garage door spring size.
Calculating Garage Door Spring Size
While spring charts are useful, sometimes you may need to perform calculations to determine the exact garage door spring size you need. This section will cover manual calculation methods for both torsion and extension springs, as well as discuss the pros and cons of using online calculators.
Manual Calculation Method
Formula for Torsion Springs
The formula for calculating torsion spring size is:
IPPT = (Door Weight x 4.45) / (Number of Springs x Number of Turns)
Where:
- IPPT = Inch Pounds Per Turn
- Door Weight is in pounds
- 4.45 is a constant (derived from the mechanical advantage of the drums)
- Number of Springs is typically 1 or 2
- Number of Turns is usually between 7.5 and 8.5 for a standard 7-foot door
Example:
Let's say you have a 200-pound door with one spring, and you want 8 turns:
IPPT = (200 x 4.45) / (1 x 8) = 111.25
You would then round this to the nearest available IPPT in the spring charts, likely 112 IPPT.
Formula for Extension Springs
For extension springs, the calculation is slightly different:
Spring Weight = (Door Weight / 2) / 2
This calculation gives you the weight each spring should be able to lift. You'll then need to consult spring charts to find a spring with the appropriate lifting capacity.
Example:
For a 200-pound door:
Spring Weight = (200 / 2) / 2 = 50 pounds
You would need two extension springs, each capable of lifting 50 pounds.
Online Calculators and Tools
Several online tools can help you calculate the correct garage door spring size. These tools often require you to input various measurements and details about your door.
Pros of using online calculators:
- Quick and easy to use
- Reduce the chance of calculation errors
- Often provide additional information (e.g., spring color codes)
Cons of using online calculators:
- May not account for all variables
- Accuracy depends on the quality of the tool and the accuracy of your input
- Can't replace professional judgment in complex cases
"While online calculators can be helpful, they should be used as a guide rather than a definitive answer. Always double-check results and consult a professional if you're unsure." - Mike Johnson, Garage Door Technician with 20 years of experience
Popular Online Garage Door Spring Calculators:
- DDM Garage Doors Spring Calculator
- Garage Door Nation Spring Calculator
- DIY Garage Door Parts Spring Calculator
Remember, these calculators are tools to assist you, not replace professional expertise. If you're uncomfortable with the calculations or unsure about the results, it's always best to consult with a garage door professional.
In the next section, we'll discuss common mistakes to avoid when determining garage door spring size, helping you ensure accuracy and safety in your measurements and calculations.
Common Mistakes When Determining Garage Door Spring Size
Even with careful measurements and calculations, it's easy to make mistakes when determining garage door spring size. Being aware of these common pitfalls can help you avoid potentially dangerous errors. Let's explore some of the most frequent mistakes and how to prevent them.
Overlooking Door Weight Changes
One of the most common mistakes is failing to account for changes in door weight over time. Several factors can affect your garage door's weight:
- Moisture absorption: Wooden doors can absorb moisture, increasing their weight.
- Additions or modifications: Adding insulation, windows, or decorative elements can significantly change the door's weight.
- Damage: Dents or warping can alter the door's weight distribution.
How to avoid this mistake:
- Regularly weigh your garage door or have it professionally assessed.
- Always recalculate spring size after making any modifications to the door.
- Consider seasonal changes, especially for wooden doors in humid climates.
Ignoring Wear and Tear
Springs lose tension over time due to regular use. Failing to account for this wear can lead to inaccurate sizing when replacing springs.
Signs of spring wear:
- Door feels heavier when manually lifted
- Door doesn't stay open when raised halfway
- Visible gaps between spring coils when the door is closed
How to avoid this mistake:
- Replace springs in pairs, even if only one appears worn.
- Consider the age and usage of your garage door when determining spring size.
- If your door has been operating well, use the existing spring size as a starting point, but verify all measurements.
Misreading Measurements
Accurate measurements are crucial for determining the correct spring size. Even small errors can lead to significant problems.
Common measurement errors:
- Measuring the entire coil diameter instead of wire size
- Including end cones in torsion spring length measurements
- Confusing inside diameter (ID) with outside diameter (OD)
How to avoid this mistake:
- Use proper tools: digital calipers for wire size, a sturdy tape measure for length
- Take multiple measurements and average them
- Have a second person verify your measurements
Measurement Accuracy Table:
| Measurement | Acceptable Margin of Error |
|---|---|
| Wire Size | ± 0.001 inches |
| Spring Length | ± 0.25 inches |
| Inside Diameter | ± 0.0625 inches |
"The difference of even 1/16 of an inch in wire size can significantly alter the spring's performance. Precision in measurement is key to safety and functionality." - Sarah Lee, Garage Door Safety Instructor
Misunderstanding Spring Wind Direction
For torsion springs, winding direction is crucial. Installing a spring with the wrong wind direction can cause immediate failure and potential injury.
How to avoid this mistake:
- Always note the wind direction of the existing spring before removal.
- If installing two springs, remember they typically wind in opposite directions.
- Use the "right-hand rule": point your right thumb in the direction of the wire end. Your fingers will curl in the direction of the wind.
Underestimating the Importance of Cycle Life
Cycle life refers to the number of times a spring can be expected to open and close before failing. Choosing a spring solely based on size without considering cycle life can lead to premature failure.
How to avoid this mistake:
- Consider your usage: high-traffic garages need springs with higher cycle lives.
- Balance cost with longevity: higher cycle life springs may cost more upfront but save money in the long run.
- When in doubt, opt for springs with higher cycle lives for added safety and durability.
By being aware of these common mistakes and taking steps to avoid them, you can ensure a more accurate determination of your garage door spring size. However, if you're ever in doubt or feel uncomfortable with the process, it's crucial to know when to seek professional help. We'll cover that in the next section.
When to Seek Professional Help
While determining garage door spring size can be a DIY task for some homeowners, there are situations where professional assistance is not just recommended, but essential. Recognizing when to call in an expert can save you time, money, and potentially prevent serious injuries.
Signs You Need Expert Assistance
- Complexity of the door system: If your garage door has a complex setup, such as multiple springs, unusual sizes, or custom features, it's best to consult a professional.
- Lack of proper tools: Accurate measurements require specialized tools. If you don't have access to these, a professional will have the right equipment.
- Uncertainty about measurements: If you're not confident in your measurements or calculations, don't risk it. A professional can double-check or perform the measurements for you.
- Old or damaged door: If your garage door is very old or has visible damage, a professional can assess whether spring replacement alone is sufficient or if other repairs are needed.
- High-usage doors: For garages with high traffic (like those in commercial settings), a professional can recommend the best springs for longevity and performance.
- Safety concerns: If you have any doubts about your ability to safely measure or replace springs, always err on the side of caution and call a professional.
Risks of DIY Spring Replacement
While measuring springs can be done safely with proper precautions, replacing garage door springs is a different matter entirely. Here are some risks associated with DIY spring replacement:
- Serious injury: Garage door springs are under extreme tension. Improper handling can result in springs snapping violently, potentially causing severe injuries.
- Property damage: A mishandled spring can damage your garage door, vehicles, or other nearby property.
- Voided warranties: Many garage door warranties become void if non-professionals attempt repairs or replacements.
- Incorrect installation: Even if you determine the correct size, improper installation can lead to door malfunction or premature spring failure.
- Legal issues: In some areas, DIY garage door spring replacement may violate local building codes or insurance policies.
Statistics on Garage Door Injuries:
According to the U.S. Consumer Product Safety Commission:
- Approximately 30,000 injuries related to garage doors are reported annually.
- About 2,200 of these injuries are caused by springs.
"The potential for injury during garage door spring replacement is significant. It's one of the most dangerous home repair tasks a homeowner can attempt." - Dr. Emily Chen, Emergency Medicine Specialist
Benefits of Professional Service
Hiring a professional for garage door spring sizing and replacement offers several advantages:
- Expertise: Professionals have extensive experience in accurately determining spring sizes for various door types.
- Safety: They have the proper tools and knowledge to safely handle high-tension springs.
- Efficiency: What might take a homeowner hours can often be completed by a professional in a fraction of the time.
- Warranty: Many professional services offer warranties on their work and the parts they install.
- Comprehensive assessment: A professional can identify other potential issues with your garage door system during the service.
- Proper disposal: Old springs need to be disposed of properly, which professionals can handle.
When to Call a Professional: Quick Checklist
- [ ] You're unsure about any measurements or calculations
- [ ] Your garage door is very old or has custom features
- [ ] You don't have the proper tools for accurate measurement
- [ ] The door shows signs of damage or wear beyond the springs
- [ ] You have any safety concerns about handling the springs
- [ ] Local regulations require professional service
Remember, while determining garage door spring size can be a DIY task, replacement should always be left to professionals. The cost of professional service is far outweighed by the safety benefits and peace of mind it provides.
Frequently Asked Questions About Determining Garage Door Spring Size
To wrap up our comprehensive guide, let's address some common questions that often arise when determining garage door spring size:
Can I use the old spring as a reference?
While the old spring can provide a starting point, it's not always reliable. Springs lose tension over time, and the original spring might not have been the optimal size. Always measure and calculate to ensure accuracy.
How often should I check my garage door spring size?
It's a good practice to inspect your garage door, including the springs, at least twice a year. However, you typically only need to determine spring size when replacement is necessary.
What if my door has multiple springs?
For doors with multiple springs, measure each spring individually. They may have different sizes or wind directions. When calculating, consider the total lifting force required and how it's distributed among the springs.
Can I mix different spring sizes?
It's generally not recommended to mix spring sizes on the same door. This can lead to uneven lifting and put stress on the door and opener. Always use matching pairs for optimal performance and safety.
By understanding these key aspects of determining garage door spring size, you can make informed decisions about your garage door maintenance and know when to seek professional assistance. Remember, safety should always be your top priority when dealing with garage door components.
Conclusion
Determining the correct garage door spring size is a crucial aspect of maintaining a safe and efficient garage door system. Throughout this comprehensive guide, we've explored the various factors that influence spring size, the step-by-step process of measurement, calculation methods, and common pitfalls to avoid.
Let's recap the key points we've covered:
- Understanding spring types: Knowing the difference between torsion and extension springs is fundamental to proper sizing.
- Factors affecting spring size: Door weight, height, width, and lift type all play significant roles in determining the appropriate spring size.
- Accurate measurements: Precise measurements of wire size, spring length, and inside diameter are essential for correct sizing.
- Calculation methods: Both manual calculations and spring charts can be used to determine the right spring size, with online calculators serving as helpful tools.
- Common mistakes: Being aware of potential errors, such as overlooking weight changes or misreading measurements, can help ensure accuracy.
- Professional assistance: Recognizing when to seek expert help is crucial for safety and proper functioning of your garage door.
The importance of accurate spring size determination cannot be overstated. Properly sized springs ensure:
- Safety: Reducing the risk of spring failure and potential injuries.
- Efficiency: Ensuring smooth operation and reducing strain on the door opener.
- Longevity: Correctly sized springs last longer, saving money on replacements.
Final safety reminders:
- Always prioritize safety over cost or convenience.
- If in doubt, consult a professional garage door technician.
- Never attempt to replace garage door springs without proper training and equipment.
"A well-maintained garage door with properly sized springs is not just a convenience, it's a crucial safety feature of your home." - Robert Brown, Garage Door Safety Association
By following the guidelines outlined in this article, you can make informed decisions about your garage door springs. Whether you choose to determine the size yourself or seek professional assistance, you now have the knowledge to ensure your garage door operates safely and efficiently.
Call to Action
Now that you're equipped with the knowledge to determine garage door spring size, we encourage you to:
- Assess your garage door springs: Take a moment to inspect your garage door system, looking for signs of wear or damage.
- Schedule a professional inspection: If it's been more than a year since your last inspection, consider having a professional assess your garage door system.
- Share this knowledge: Pass on this information to friends and family to promote garage door safety in your community.
- Stay informed: Garage door technology and safety standards evolve. Keep yourself updated on the latest developments and best practices.
Remember, a well-maintained garage door is a safe garage door. By taking proactive steps to understand and maintain your garage door springs, you're investing in the safety and functionality of your home.
For additional resources on garage door maintenance and safety, consider visiting reputable websites such as:
- International Door Association (IDA)
- Door & Access Systems Manufacturers Association (DASMA)
- Consumer Product Safety Commission - Garage Door Safety
Your garage door is one of the largest moving objects in your home. By ensuring its springs are properly sized and maintained, you're taking a significant step towards a safer and more efficient household.
